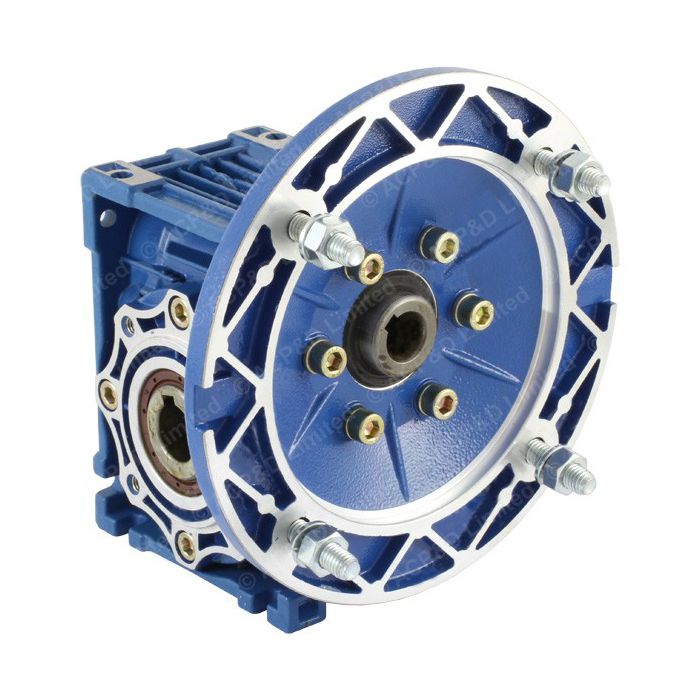

TEC FCNDK Right Angle Worm Gearbox - FCNDK40-60:1-0.18KW-2P-63B5
Specifications
Brand:
TEC Electric Motors
Gearbox Brand:
TEC FCNDK Right Angle Worm Gearbox
Gearbox Type:
Right-angle Worm
Motor Frame:
63
Motor Power:
0.18kW
Gearbox Ratio:
60:1
Output Speed:
45rpm
Maximum Torque Output:
25Nm
Product Details
TEC - 0.18kW x 45RPM 60:1 Right-angle Worm Gearbox for 2 Pole 63 Frame B14 Motor (motor not included), type: FCNDK40
Ratio: 60:1
Output Speed: 45.17RPM for Input Speed at 2710RPM (50Hz)
Max Output Torque: 25Nm
Efficiency: 62%
Max Input Power: 0.2kW for 2 pole motor.
Output with 0.18kW 2 Pole Motor - 0.11kW x 45.17RPM at 50Hz - 23.6Nm at 1.06 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 63 Frame Motor. 11mm bore diameter, 90mm flange with 4 x M10 Tapped holes equispaced on 75mm PCD with 60mm register.
