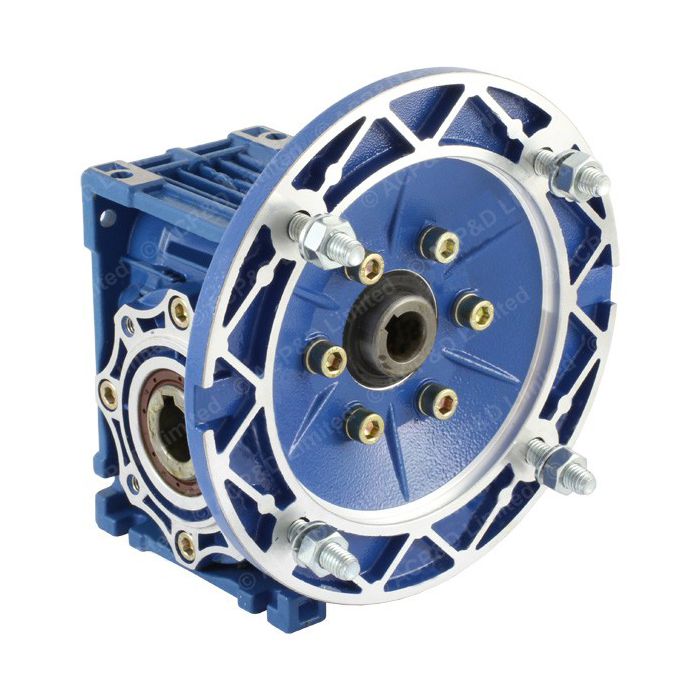

TEC FCNDK Right Angle Worm Gearbox - FCNDK40-20:1-0.55KW-2P-71B5
Specifications
Brand:
TEC Electric Motors
Gearbox Brand:
TEC FCNDK Right Angle Worm Gearbox
Gearbox Type:
Right-angle Worm
Motor Frame:
71
Motor Power:
0.55kW
Gearbox Ratio:
20:1
Output Speed:
138rpm
Maximum Torque Output:
27Nm
Product Details
TEC - 0.55kW x 138RPM 20:1 Right-angle Worm Gearbox for 2 Pole 71 Frame B5 Motor (motor not included), type: FCNDK40
Ratio: 20:1
Output Speed: 138RPM for Input Speed at 2760RPM (50Hz)
Max Output Torque: 27Nm
Efficiency: 78%
Max Input Power: 0.5kW for 2 pole motor.
Output with 0.55kW 2 Pole Motor - 0.43kW x 138RPM to 50Hz - 29.8Nm at 0.9 Service Factor.
Lubrication: Synthetic Oil, sealed for life and maintenance-free
Input flange and shaft socket to suit IEC 71 Frame Motor. 14mm bore diameter, 160mm flange with 4 x 9 mm holes equispaced on 130mm PCD with 110mm register.
