Neugart PLPE series low-backlash in-line planetary  gearbox

The Neugart PLPE range of low-backlash in-line planetary gearboxes is a powerful, absolutely reliable and always highly efficient series of low-backlash, in-line planetary gearboxes. The PLPE gearbox series maintains the accustomed level of Neugart quality. The flexibility at the output end of the gearbox is a decided advantage of the PLPE series and offers an innovative and forward-looking solution for the end user.

Features

* Low backlash
* High output torque
* High efficiency (97%)
* 17 ratios i=3,...,100
* Low noise
* High quality (ISO 9001)
* Any mounting position
* Easy motor mounting
* Life time lubrication
* More options
* Direction of rotation equi-directional
* Balanced motor pinion

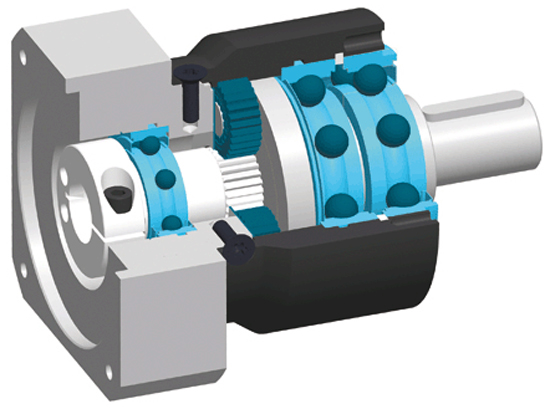

Neugart PLPE series low-backlash in-line planetary  gearbox sectional drawing

Key

  1 - Output shaft
  2 - Output shaft bearing
  3 - Planet gear
  4 - Housing with integrated ring gear
  5 - Sun gear
  6 - Bearing for sun gear
  7 - Motor adapter plate
  8 - Clamping ring
  9 - Clamping screw
10 - PCS system

For more information please refer to our technical brochure.

Products that we offer

Gearbox

Nominal Output Torque

Backlash

Max. Radial Force
(for 20,000 hrs)

Max. Axial Force
(for 20,000hrs)

PLPE50

5 - 15Nm

1-stage: <15arcmin

2-stage: <19arcmin

800N

1,000N

PLPE70

15 - 33Nm

1-stage: <10arcmin

2-stage: <12arcmin

1,050N

1,350N

PLPE90

38 - 97Nm

1-stage: <7arcmin

2-stage: <9arcmin

1,900N

2,000N

PLPE120

95 - 195Nm

1-stage: <7arcmin

2-stage: <9arcmin

2,500N

4,000N

PLPE155

210 - 460Nm

1-stage: <8arcmin

2-stage: <10arcmin

5,200N

7,000N
