Reliance Rack Actuators

Reliance RCARAK actuator

The Reliance rack actuator or 'Racktuator' as it is known is a series of actuators which comprise a number of solid racks and also a number of tubular rack designs which can enable fluids, tubes or wires to be passed through the assembly, reducing the risk of entanglement, and keeping the system tidy.

The Reliance Racktuator is a compact, lightweight design which makes the actuator ideal for medical or scientific such as:

    * Sampling machines
    * Pick and place machines
    * Dispensing machines
    * Specimen analysis
    * Reagent testing

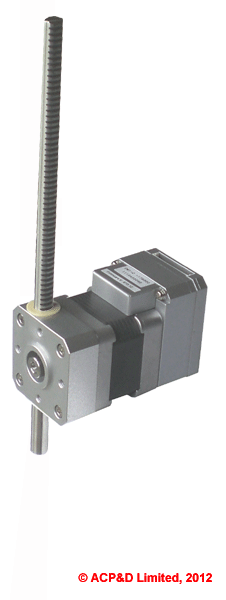

The version of the Racktuator which is fitted with the Reliance Cool Muscle servo motion control package (see the picture on the left which includes the NEMA size 17 'Cool Muscle' motor) combines an

    * Intelligent vector driver with a 32 bit RISC CPU,
    * H-infinity tuner,
    * A 50,000 count magnetic encoder,
    * 0-3000 rpm high torque motor
    * Power management

Into one intelligent motion control system, which allows a multitude of functions from just one motor.

For 'economy' applications the Racktuator is fitted with a 'standard' stepping motor without the intelligent drive (see the picture on the right).

Index - Reliance rack actuators 02 - Reliance hybrid stepper, economical rack actuator

Select the product below to view:

'Cool muscle' rack actuator



Hybrid stepper rack actuator



'Cool muscle' rack actuator

Back to top

[Reliance cool muscle, economical rack actuator, type: RCMRA17L-6-250-C-S]Reliance cool muscle, economical rack actuator, type: RCMRA17L-6-250-C-S
Reliance cool muscle, economical rack actuator, type: RCMRA17L-6-250-C-S. NEMA17 cool muscle stepping motor, 6mm diameter stainless steel rack, 250mm rack length Computer drive
[More Information - Buy Now]
760.60
[Reliance cool muscle, economical rack actuator, type: RCMRA17S-6-250-C-P]Reliance cool muscle, economical rack actuator, type: RCMRA17S-6-250-C-P
Reliance cool muscle, economical rack actuator, type: RCMRA17S-6-250-C-P. NEMA17 cool muscle stepping motor, 6mm diameter Peek rack (used in medical applications), 250mm rack length Computer drive
[More Information - Buy Now]
796.59
[Reliance cool muscle, economical rack actuator, type: RCMRAK17S-8-200-C-S]Reliance cool muscle, economical rack actuator, type: RCMRAK17S-8-200-C-S
Reliance cool muscle, economical rack actuator, type: RCMRAK17S-8-200-C-S. NEMA17 cool muscle stepping motor, 8mm diameter stainless steel rack, 200mm rack length Computer drive
[More Information - Buy Now]
698.66

Hybrid stepper rack actuator

Back to top

[Reliance hybrid stepper, economical rack actuator, type: RRA17-6-250]Reliance hybrid stepper, economical rack actuator, type: RRA17-6-250
Reliance economical rack actuator, type: RRA17-6-250. NEMA17 hybrid stepping motor, 6mm diameter rack, 250mm rack length
[More Information - Buy Now]
356.51
[Reliance hybrid stepper, economical rack actuator, type: RRA17-6-250-S]Reliance hybrid stepper, economical rack actuator, type: RRA17-6-250-S
Reliance economical rack actuator, type: RRA17-6-250-S. NEMA17 hybrid stepping motor, 6mm diameter stainless steel rack, 250mm rack length
[More Information - Buy Now]
320.44
[Reliance hybrid stepper, economical rack actuator, type: RRAK17-8-200]Reliance hybrid stepper, economical rack actuator, type: RRAK17-8-200
Reliance economical rack actuator, type: RRAK17-8-200. NEMA17 hybrid stepping motor, 8mm diameter stainless steel rack, 200mm rack length (100mm max. working stroke)
[More Information - Buy Now]
264.60

Stepper motor, stepping motor, step motor, hybrid stepper motor, permanent step motor, sonceboz, 2-phase step motor Actuator, linear actuator, small linear actuator, electric actuator and linear, 12v linear actuator, electric actuator, valve ac
Downloads
To download each file, right-click and choose 'Save Target As'.

Datasheets

[File] Reliance Economical Rack Actuators - Size 17 (674.2 kB)

[File] Reliance Tubular Rack Actuators - Size 17 (636.5 kB)

[File] Reliance Solid Rack Actuators - Size 23 (632.6 kB)

[File] Cool Muscle RT3 Quick Reference Guide (137.2 kB)
