Marathon Stainless Steel Motors

Marathon stainless steel IP66 motor with flange for the food industry

Coming soon

The Marathon SSM series ac induction motor has specifically been designed to be used in the food industry and meets the food industry requirement for cool performance. Manufactured from quality stainless steel this new Marathon SSM motor offers the IP66 washdown protection required on food processing machinery. With its smooth TENV design and triple protection against water penetration (slinger, longpath, shaft seal from the inside) and quality ball bearings lubricated for life, the Marathon SSM series motors are able to comply with the hygienic standards required.

The Marathon stainless steel SSM series motors are available in:

2-pole in ratings from 0.75kW to 3kW;
4-pole in ratings from 0.55kW to 3kW;
6-pole in ratings from 0.37kW to 1.5kW.

Marathon stainless steel IP66 washdown motor for the food industry

These SSM series washdown Marathon motors offer a true IEC motor construction, have an IE3 efficiency class, have full ErP compliance and they are suitable for use with variable speed drives (inverters). The motor's high efficiency rating means they have low losses and hence low heat dissipation. The IEC design make them an ideal 'drop-in' replacement for standard IEC motors and they comply with all hygienic standards.

These Marathon SSM series washdown motors have exceptional resistance against water penetration and they are designed for hot water (80⁰C) jet washing.

The new Marathon SSM series stainless steel washdown motors are the perfect solution for heavy duty applications such as found in food processing.

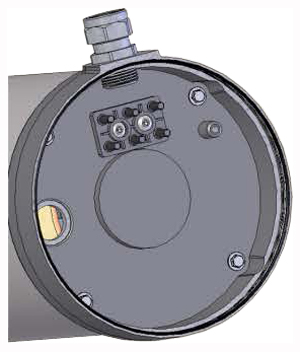

Marathon stainless steel IP66 washdown motor terminal box

The SSM motors have a conventional 6 pin terminal block.


The Marathon SSM series washdown motor range

    Efficiency      Insulation  BasicMounting
TypeOutputClassCoolingVoltageProtectionClassTemp riseExecutionOptionOptionOption
2pole
SSM 80M02K SSM 80M020.75 kW 1.1 kWIE3 IE3TENV TENV230/400V 50Hz 230/400V 50HzIP66 IP66F Fclass B (80K) class B (80K)B3/B14A B3/B14AB3/B5 B3/B5B14A B14AB5 B5
SSM 90S02 SSM 90L021.5 kW 2.2 kWIE3 IE3TENV TENV230/400V 50Hz 230/400V 50HzIP66 IP66F Fclass B (80K) class B (80K)B3/B14A B3/B14AB3/B5 B3/B5B14A B14AB5 B5
SSM 100L023 kWIE3TENV400/690V 50HzIP66F90KB3/B14AB3/B5B14AB5
4pole
SSM 80M04K SSM 80M040.55 kW 0.75 kWIE3 IE3TENV TENV230/400V 50Hz 230/400V 50HzIP66 IP66F Fclass B (80K) 90KB3/B14A B3/B14AB3/B5 B3/B5B14A B14AB5 B5
SSM 90S04 SSM 90L041.1 kW 1.5 kWIE3 IE3TENV TENV230/400V 50Hz 230/400V 50HzIP66 IP66F Fclass B (80K) 90KB3/B14A B3/B14AB3/B5 B3/B5B14A B14AB5 B5
SSM 100L04K SSM 100L042.2 kW 3 kWIE3 IE3TENV TENV230/400V 50Hz 400/690V 50HzIP66 IP66F F90K 90KB3/B14A B3/B14AB3/B5 B3/B5B14A B14AB5 B5
6pole
SSM 80M06K SSM 80M060.37 kW 0.55 kWIE3 IE3TENV TENV230/400V 50Hz 230/400V 50HzIP66 IP66F Fclass B (80K) class B (80K)B3/B14A B3/B14AB3/B5 B3/B5B14A B14AB5 B5
SSM 90S06 SSM 90L060.75 kW 1.1 kWIE3 IE3TENV TENV230/400V 50Hz 230/400V 50HzIP66 IP66F F90K 90KB3/B14A B3/B14AB3/B5 B3/B5B14A B14AB5 B5
SSM 100L061.5 kWIE3TENV230/400V 50HzIP66F90KB3/B14AB3/B5B14AB5

If you would like price and availability information on the Marathon SSM series motors please ring us on +44 (0)161 343 1884, fax us on +44 (0)161 343 7773 or email us at sales@acpd.co.uk.
